Guardian Emergency Showers,
Safety Stations & Eye Washes

Guardian Equipment 16 Gallon Portable Eye Wash, Heated or Non-Heated

• Self-Contained Gravity Flow eye wash units use gravity to deliver water through dual spray heads.
• Units deliver over 0.4 gpm for 15 minutes, thus complying with the provisions of ANSI Z358.1 for eye washes.
• Units have a rugged plastic tank that can be installed in a wide variety of locations.
• These units are ideal for use where a continuous supply of potable water is not available, especially in remote plat areas, low traffic and/or low hazard areas.
• Includes ANSI compliant identification sign.
• Includes steel wall brackets for easy mounting, a drainage hose, bacteriostatic additive and a test log card.
• Just add potable water.  No special cartridges needed.
• Aquasep water preservative to protect against growth of bacteria & algae included.
• G1540HTR is a heated unit fully freeze-resistant for both indoor and outdoor environments w/easy to read LCD screen and green LCD status indicator.

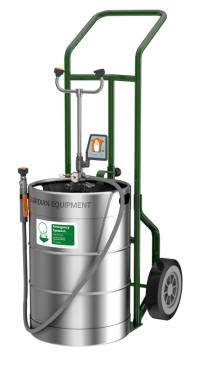

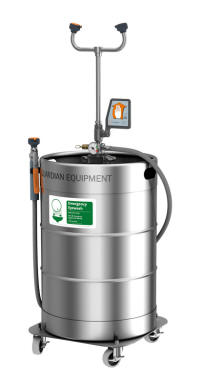

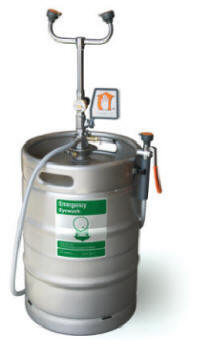

Guardian Equipment 15 Gallon Portable Eye Wash/Drench Hose, Heated or Non-Heated

• Self-contained eye wash and/or drench hose units are ideal where a continuous supply of portable water is not available.
• These units may be used in low traffic areas, low hazard areas or where installation of plumbed equipment is not cost effective.
• 15 gallon stainless steel pressurized tank.
• Tank has built-in carrying handles, air intake fitting, pressure gauge and pressure relief valve.
• Tank has approximately 10 gallons (37.9 liters) usable capacity.
• To operate unit, fill with clean potable water and add bacteriostatic additive (supplied with unit).
• After filling with water, pressurize unit to 80 PSI air pressure (uses 305-32 schrader valve connection to air compressor).
• Note that under ANSI Z358.1-2009, drench hose units supplement but do not replace other types of emergency equipment.
• 35.6 lbs. empty, 118.9 lbs. filled.

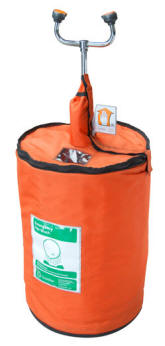

• G1562HTR is a heated unit fully freeze-resistant for indoor and outdoor environments w/GFCI reset and 9 ft cord.

Guardian Equipment - G5000 Drench Hose Units

• Dual purpose eye wash/drench hose for wall and deck mounting.
• Unit meets the provisions of ANSI Z358.1 as both a primary eye wash and drench hose.
• Unit may be left in the mounting bracket (G5026) or deck flange (G5022) for use a a fixed eye wash, leaving user's hands free.
• Alternatively, unit may be removed for use as a drench hose to rinse any part of the user's eyes, face or body.
• Includes ANSI compliant identification sign.

Guardian Equipment - G1600 Series Emergency Showers

• 10 inch diameter shower head is orange ABS plastic (G1635) or stainless Steel (G1635SSH).
• 1 inch IPS chrome-plated bras stay-open ball valve.
• Valve is US-made with chrome-plated brass ball and Teflon seals.
• Furnished with stainless steel actuating arm and 29 inch stainless steel pull rod.
• 1 inch NPT female inlet supply.
• These units meet ANSI Z358.1 standards primary emergency showers.
• Includes ANSI compliant identification sign.

Guardian Equipment - G1100 and G1101 EyeSafe and EyeSafeX Faucet Mounted Eye Washes

• EyeSafe faucet-mounted eye washes convert any faucet into an emergency eye wash station without interfering with normal faucet operation.
• An EyeSafe unit can be installed at any sink, close to where accidents might occur.
• In an emergency, unit is quickly located and activated, and provides an unlimited supply of potable water for rinsing the user's eyes.
• The G1101 aerated heads (X-model) is mounted 5 inches apart from the source.
• Units meet ANSI Z358.1 standard as personal eye wash, but NOT as a primary eye wash.

Guardian Equipment - 1750 Series Eye/Face Washes

• Eye/face wash for wall mounting.
• Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
• These units meet ANSI Z358.1 standards as primary eye/face washes.
• Choice of stainless steel or ABS plastic bowl.
• Includes ANSI compliant identification sign.

Guardian Equipment - G1814 Series Wall Mounted Eye Washes

• Eye wash for wall mounting.
• Two GS-Plus spray-type outlet heads delivery a flood of water for rinsing eyes.
• The G1814BC unit has a stainless steel cover to protect bowl from dust, dirt and other contaminants.
• Choice of stainless steel or ABS plastic bowl.
• Includes ANSI compliant identification sign.
• These units meet ANSI Z358.1 standard as primary eye washes.

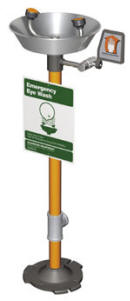

Guardian Equipment - Pedestal Mounted Eye Washes - G1825

• The G1825 is a free standing, pedestal mounted eye wash.
• Two GS-Plus spray-type spray heads deliver a flood of water for rinsing eyes.
• The G1825HFC eye wash's water flow is activated by either flag handle or foot treadle.
• Choice of stainless steel or ABS plastic bow.

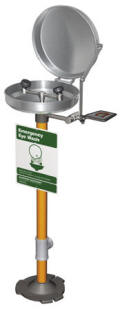

• The G1825BC unit has stainless steel cover to protect bowl from dust, dirt and other contaminants.

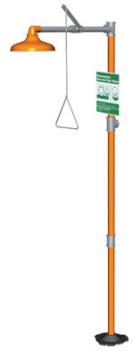

Guardian Equipment - Emergency Shower
G1662

• Emergency Shower, Free Standing, Plastic Shower Head
• Application: Free standing emergency shower. Shower Head: 10� diameter.
• Shower head is orange ABS plastic (G1662) or stainless steel (G1662SSH).
• Valve: 1� IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon� seals.
• Furnished with stainless steel actuating arm and 29� stainless steel pull rod. Pipe and Fittings: Schedule 40 galvanized steel.
• Furnished with orange polyethylene covers on vertical piping for high visibility and corrosion resistance.
• Supply: 1 1/4� NPT female top or side inlet.
• Sign:  ANSI-compliant identification sign.

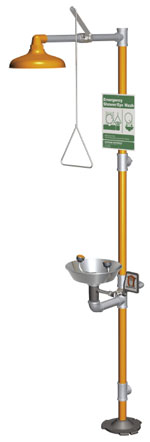

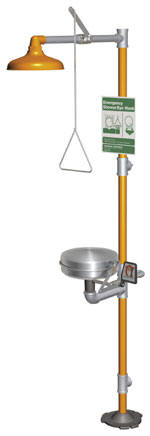

Guardian Equipment - Safety Station
G1902

• The G1902 is a combination eye wash and shower safety station.
• Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.
• The G1902HFC eye wash is activated by flag handle or foot treadle.
• The G1902BC eye was has a stainless steel cover to protect bowl from dust, dirt and other contaminants.
• Cover is raised automatically when flag handle is activated.
• Cover closes when handle is returned to closed position.
• Choice of stainless steel or ABS plastic bowl.
• These units meet ANSI Z358.1 standard as primary eye wash/shower.
• Includes ANSI compliant identifications sign.
