Bullard offers supplied air
respiratory solutions for any industry application, both high
pressure (compressed air) & low pressure (free air).
Shown below are some low-pressure systems. |
To build a complete system, you need the following:
- Determine if you are using high pressure (plant-supplied
air) or a low pressure (free air pump).
- Note: High pressure systems use 1/4 inch airlines;
low pressure systems use 1/2 inch airlines.
- Select the appropriate headgear for your application.
- Choose the correct air pump for the number of workers using the
system.
- Choose the correct accessories to match the air pump chosen.
- Bullard offers complete systems or you can buy the
individual pieces for custom applications.
This Bullard Supplied
Air Product Matrix Chart can guide you through the process.
|

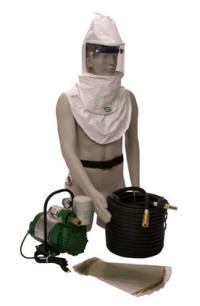

Bullard CC20 Supplied Air Respirator System with EDP Pump
- CC20 complete system includes:
- CC20TIC35 Respirator Assembly Tychem Hood.
- EDP10 Free Air Electric Pump - 10 cfm at 5psig.
- 100 foot air supply hose (V20100ST).
- 25 pack of spare cover lens (20LCL).
- For use in painting, chemical handling & healthcare.
|
|

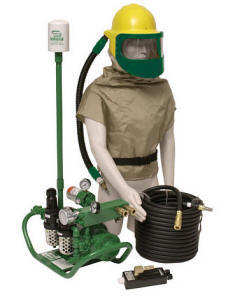

Bullard 88VX Supplied Air Respirator System with ADP Pump
- 88VXSYS
is a complete package which includes an 88VX3235 respirator
with 46VX nylon cape (28 in length), an ADP20 free-air pump,
a V2050ST air supply hose and a Frigitron 2000 Climate
control device.
- Air pump is for two people; complete
system is everything for a one-person setup.
- Note: Air driven pump requires external
air supply.
- For use in abrasive blasting
environments.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|

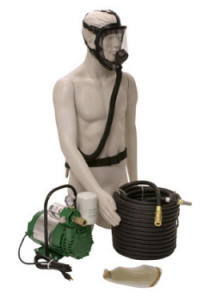

Bullard Full-Face Supplied Air System
- SPEC35 complete system includes:
- SPEC35 full face respirator, size large.
- EDP10 Free Air Electric Pump - 10 cfm at 5psig.
- 100 foot air supply hose (V20100ST).
- 25 pack of spare cover lens (LC).
|
|
|
|
Bullard Full-Face Supplied-Air Respirator
- Includes:
- Full face respirator.
- Flow control valve.
- Breathing tube.
- Belt.
- For use with any free air pump.
|
|
|
|
|
|
Bullard Free Air Pump - EDP10
- Completely mobile and portable.
- Electric pump supplies air for one hood-style / two half or full face mask airline respirators.
- Air flow is 10 cfm at 5 psig.
- The EDP10 is
lightweight - only 50 pounds.
|
|
 |
|
|
|
Bullard Free Air Pump - ADP20
- Bullard Free Air Pumps are oil-less, so they do not produce
carbon monoxide, oil vapor or oil mist.
- This air driven model is ideal for both general purpose
and hazardous duty use.
- The air driven free-air pump supplies air to four hood-style
or six half or full face mask respirators approved to operate at
25 psig or less.
- Intrinsically safe and offering an inlet drive pressure of
95 psig, air flow is 30 cfm at 5 psig.
- The ADP20 is also compatible with the Bullard
Frigitron 2000 climate control devices (for one worker).
|
|
|
|
|
Bullard Free Air Pump - EDP16TE
- Electric pump supplies air for two hood-style or three half or full face mask
airline respirators.
- Air flow is 16 cfm at 5 psig.
- Available in
a hazardous-duty version (EDP16HAZ).
- Totally enclosed.
|
|
|
|
|
|
|
|
|
|
|
Replacement Filters for all Bullard Pumps
- Bullard recommends changing air filters every 200 hours.
- Sold in 2 packs.
|
|
|
|
|
|
|
|
Bullard Low Pressure/Free Air Supplied Air Respiratory Accessories
- Bullard offers a complete line of
supplied-air respiratory accessories.
- Each of the items is made with the
same quality that has been associated with the Bullard brand
of products.
- Items include those you need
to build a complete supplied-air system, as well as those
items you will need to properly maintain an existing
supplied-air system.
|
Bullard Supplies For The CC20 System:
 |
|
Bullard Supplies For The 88VX System:
 |
Bullard Replacement Tychem Hoods for
Use w/CC20 System
- Not for abrasive blasting.
- Double bib hoods for use with hard hats.
|
|
Bullard Frigitron 2000 Cool Tube Assembly
- Cools incoming air supply up to 20 degrees F.
- For use with ADP20 free air pump.
- NOT compatible with EDP free air pumps.
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Bullard High Pressure/Plant Air Supplied Air Respiratory
Systems & Accessories
|
Bullard 88VX System for Compressed Air
|
|
- Cools incoming air by at least 30 degrees F.
|
- This advanced respirator assembly
includes an 88VX Series Respirator with a durable 46VX nylon
cape (28 in length) and an EVX30 breathing tube assembly
with Industrial Interchange (Hansen compatible) nipple, and
nylon belt.
- Also Features an inner and outer
lens with Mylar lens covers.
- For use with compressed air (high
pressure).
- Requires CO filtration panel w/CO monitor (sold separately).
|
|
- Heats or cools incoming air by at least 30 degrees F.
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
Please call for other systems and
CO filtration panels & monitors.
|
|
|
|
