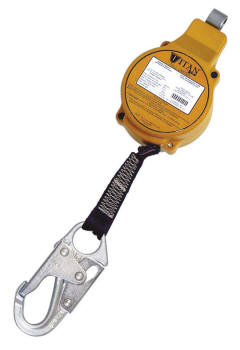

Titan� Fall Limiters
- Offers 11-ft. (3.4 m) of working capacity.
- Requires less fall clearance than shock-absorbing lanyards.
- Offers more mobility than a shock-absorbing lanyard.
- Quick-activating stainless steel braking mechanism arrests free falls.
- Compact, lightweight design, corrosion-resistant interior components.
- No annual factory recertification required.
- Visual load indicator.
Available Configurations:
- TFL-Z7/11FT...........No unit connector (shown in left
picture)
- TFL-1-Z7/11FT.......Steel Twist-Lock Carabiner
- TFL-2-Z7/11FT.......Stainless Steel Swivel Shackle
- TFL-3-Z7/11FT.......Stainless Steel Swivel Shackle &
Steel Twist-Lock Carabiner
- TFL-6-Z7/11FT.......Stainless Steel Swivel Shackle &
Steel Locking Rebar Hook
- All configurations have steel locking snap hook lanyard
connector.
|
|
|
|
|
|
|
|
|
|
|

Miller� Titan Self Retracting Lifelines (SRLs)
|
|
|
- Ideal for a
full-range of applications including construction and general
maintenance.
- Constructed of durable, impact-resistant housings
with steel frames.
- Designed to endure the demands
of rigorous work environments.
- MFR Part No's: TR20-Z7/20FT, TR30-Z7/30FT, TR50-Z7/50FT,
TR65-Z7/65FT.
|
|
- Affordably priced.
- Quick-activating braking mechanism.
- Variety of working lengths.
- Quick-activating stainless steel braking mechanism arrests free
falls.
- No annual factory recertification required.
- Snap hook with swivel; carabiner included.
- Narrow payout port.
- Meets OSHA 1926.502, ANSI A10.14 and CSA Z259.2.2-98 Type 2.
|
|
|
|
|

Miller� Titan Body Belt - T3310
|
|

Miller� Titan Body Belt - T3320
|
- Body belt with tongue buckle.
- Single D-ring.
- 3-inch (76mm) back pad.
|
|
- Body belt with tongue buckle.
- Two side D-rings.
- 3-inch (76mm) back pad.
|
|
|
|
Sizing info for body belts: |
|
|
- Small = 32 - 40 inches
- Medium = 36 - 44 inches
- Large = 42 - 48 inches
- Extra Large = 44 - 52 inches
- Double Extra Large = 48 - 56 inches
|
|
|
|
|
View the complete Miller Catalog
|
|
|
|
See our other
Miller Fall Protection products.
|
|
|
|
|

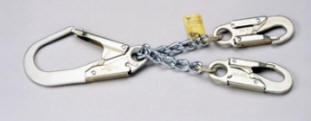

Titan� II Positioning Assembly - Chain
|
|
Titan� II Positioning Assemblies - Web
|
- Rebar chain assembly.
- Two locking snap hooks & one large locking rebar hook.
- Locking snap hook � 3/4-in. (19 mm) gate opening.
- Large locking rebar hook � 2-1/2-in. (64 mm) gate opening.
- All connectors include 3,600-lb. gate-strength.
- Other configurations available.
|
|
- Web positioning assembly.
- Two locking snap hooks & one large locking rebar hook.
- Locking snap hook � 3/4-in. (19 mm) gate opening.
- Large locking rebar hook � 2-1/2-in. (64 mm) gate opening.
- All connectors include 3,600-lb. gate-strength.
- Other configurations available.
|
|
|
|
|
|
|

Miller� Titan Tubular Shock Absorbing Lanyard
|
|

Miller� Titan T-Bak Lanyard
|
- Tubular Shock-Absorbing Lanyards feature a built-in woven inner
core which smoothly expands 3-1/2 feet (1.1m) to reduce fall
arrest forces, while the outer jacket serves as a back-up web
lanyard.
|
|
- The new Titan T-BAK� lanyard with pack-type shock absorber is
designed for tie-back use, eliminating the need for a separate
anchorage connector.
|
|
|
|
|
 |
|

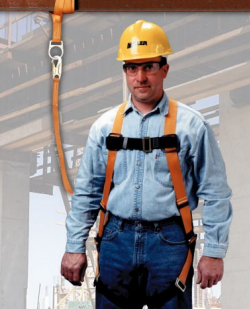

Miller� Titan Construction Fall Protection Kit
- Kit includes:
- Universal-sized, full-body harness w/tongue buckle leg straps
& back D-ring (T4500/U)
- 6 ft. tubular shock-absorbing lanyard (T5111/6FT).
- 6 ft cross-arm strap (T7314/6FT).
- Meets OSHA, ANSI A310.32 & CSA standards.
|
|
|
|
|
Miller� Titan Non-Stretch Full-Body
Harnesses:
|
|
|
- New, improved lightweight webbing for all-day comfort and
dependability.
- One universal size fits most (Small & XXL sizes available).
- Rated to 310 lbs.
|
|
- Fully adjustable designs.
- Sub-pelvic strap.
- Sliding back D-Ring.
- Contractor harness features removable tool belt, back pad &
side D-rings.
|

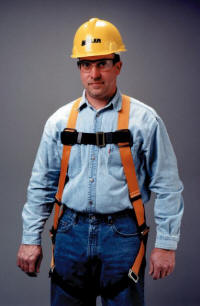

Miller� Titan Full-Body, Non-Stretch
Harness - T4000/U
|
|

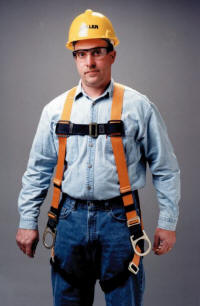

Miller� Titan Full-Body, Non-Stretch
Harness - T4007/U
|
|
|
|
The following table shows the
difference between the models at a glance:
|
Model No.
Side D-Rings |
|
Shoulder Straps
Leg Straps |
T4000/U
No |
|
Mating
Mating |
T4007/U
Yes |
|
Mating
Mating |
T4500/U
No |
|
Mating
Tongue |
T4507/U
Yes |
|
Mating
Tongue |
|
|
|

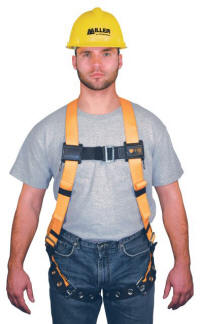

Miller� Titan Full-Body, Non-Stretch
Harness - T4500/U
|
|

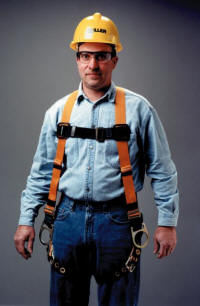

Miller Titan� Full-Body, Non-Stretch
Harness - T4507/U
|
|
|
|
|
|
|
|
View the Miller�
Harness Sizing Chart
|
|
Miller� Titan T-Flex Stretchable Full-Body
Harnesses:
|
|
|
- Durable, stretch webbing construction for improved comfort and
greater mobility.
- Fully adjustable design for maximum comfort.
- Non-slip mating buckle chest strap promotes proper fit.
- Sub-pelvic strap for added safety & support.
- One universal size fits most (Small & XXL sizes available).
- Rated to 400 lbs (181 kg).
|
|
- Back strap increases safety by preventing roll out in event
of fall.
- Sliding D-Ring and pad ensure correct back D-ring
positioning.
- Pull-free lanyard ring for added convenience.
- All models include back D-ring and optional front D-ring.
- Contractor harness features removable tool belt, back pad &
side D-rings.
|

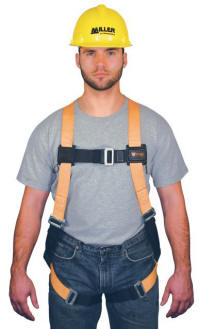

Miller� Titan T-Flex Stretchable Full-Body
Harness - TF4000/U
|
|

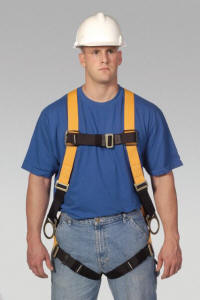

Miller� Titan T-Flex Stretchable Full-Body Harness - TF4007/U
|
|
|
|
|
|
|
The following table shows the
difference between the models at a glance:
|
Model No.
Side D Rings |
|
Shoulder Straps
Leg Straps |
TF4000/U
No |
|
Mating
Mating |
TF4007/U
Yes |
|
Mating
Mating |
TF4500/U
No |
|
Mating
Tongue |
TF4507/U
Yes |
|
Mating
Tongue |
|
|
|

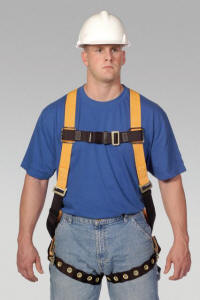

Miller� Titan T-Flex Stretchable Full-Body
Harness - TF4500/U
|
|

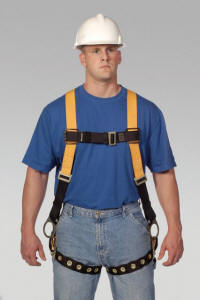

Miller� Titan T-Flex Stretchable Full-Body
Harness - TF4507/U
|
|
|
|
|
