Miller� Fall Protection by Honeywell

Fall Limiters & Self-Retracting Lifelines

Miller MiniLite Fall Limiter

• Self-retracting 11 feet web lanyard with a quick activating breaking system limits a free fall to inches.
• In contrast to shock-absorbing lanyards, the fall limiter eliminates the need for extended fall distance clearance.
• Minimizes injuries and makes rescue easier.
• Includes a steel twist-lock carabiner and a stainless steel swivel shackle.
• Meets the new ANSI Z359 requirements.
• 1 inch polyester webbing is eleven feet long with a tamper proof locking snap hook.

Miller MightyLite Self-Retracting Lifeline

• Durable and dependable, corrosion-resistant stainless steel and aluminum housing.
• No annual factory recertification required � lowers cost of ownership and increases productivity.
• Ideal for hard-to-mount locations.
• Corrosion-resistant stainless steel and aluminum components extend service life.
• Carabiner and tagline included.
• Rated to 400 lbs. (181.4kg) capacity when using a SofStop shock absorber (928LS/18INYL).
• Optional mounting bracket available (MFR P/N 9082 & 9083)
• Available in 20, 30, 50, 65, 100, 130 and 175 foot lengths.
• 3/16 in cable available in galvanized wire or stainless steel.
• MFR Part No's:  RLS30G-Z7/30FT, RLS30S-Z7/30FT.
• These are made to order by the MFR.  Allow at least 10 days for delivery.

Miller� Scorpion� Personal Fall Limiter

• The lightweight compact design of the 9 ft. Scorpion Personal Fall Limiter requires less fall clearance, offers greater mobility and reduces tripping hazards.
• There is greater versatility through dual operation; attach directly to the harness D-ring for use as a personal fall limiter or us as a traditional self-retracting lifeline.
• Features include a quick-activating, high strength stainless steel braking system to arrest free falls, and a visual load indicator to warn when the unit must be removed from service.
• No annual factory recertification required.
• Meets applicable OSHA, ANSI and CSA standards

Miller� Falcon� Self-Retracting Lifelines

• This extremely durable and strong lifeline is designed to be the toughest, most rugged and nearly indestructible lifeline solution.
• It's corrosion-resistant stainless steel and aluminum internal components extend the service life and reduce replacement costs.
• The unique side payout design reduces wear on the entry guide bushing and cable for smooth operation and less drag.
• Dual swivels (unit top and snap hook) to minimize twisting.
• The improved load indicator on the snap hook identifies when the unit needs to be removed from service.
• Pound for pound, the strongest, most durable retractable lifeline.
• No annual factory recertification required.
• Meets applicable OSHA, ANSI and CSA standards.
• Available in 20 Ft (6m), 30 Ft (10m), 50 Ft (15m) & 65 Ft (20m) lengths.
• All models feature 3/16" rope w/tagline & carabiner.
• The New Falcon Web SRL (MFR Part No's MP16P/16FT & MP20P/20FT) also available.

Miller� Manyard� II Stretchable Shock-Absorbing Lanyards

• Contracts from 6 ft. to 4 ft. to greatly reduce the chances of tripping, snagging or dragging.
• Manyard II lanyards include a special woven shock absorbing inner core that smoothly expands up to 42 in. to reduce fall arrest forces.
• Outer heavy-duty tubular jacket serves as a backup web lanyard.
• Unique warning flag provides visual proof that a lanyard has been involved in a fall and should be removed from service
• Other features include locking snap hooks with 3/4 in. gate opening, locking rebar hooks with 2 1/2 in. gate opening, and inspection log label.
• Standard 6 ft. length shown.
• Meets applicable OSHA, ANSI and CSA standards

Miller� StretchStop� Lanyards with SoftStop� Adjustable Shock Absorbers

• When contracted from 6 ft. to 4 ft., the StretchStop Lanyard minimizes the chances of tripping.
• The integral SoftStop shock absorber pack is specially designed with a woven inner core that smoothly expands up to 42 in. to reduce fall arrest forces.
• A heavy-duty back-up safety strap is incorporated for added safety protection.
• Features two locking snap hooks (3/4 in. gate openings).
• Standard 6 ft. length.
• Meets applicable OSHA, ANSI and CSA standards.

Miller� BackBiter� Tie-Back Lanyards

• Designed specifically for tie-back use, the BackBiter features include:  SoftStop shock absorber pack, locking Miller 5K snap hooks, locking snap hook (3/4 in. gate opening), and heavy-duty Cordura nylon webbing.
• BackBiter is available in single or twin-leg configurations.
• Twin-leg models can be used for 100% tie-off requirements.
• Standard 6 ft. length.
• Meets applicable OSHA, ANSI and CSA standards

Miller� Adjustable Web Positioning Lanyard

• Adjustable Restraint/Positioning Lanyard is ideal for positioning in conjunction with a full body harness.
• Easily attaches to D-rings on any standard harness.
• Features locking snap hooks at each end.
• Adjustable to allow workers to set the lanyard length from 4 ft. to 6 ft. based on the work environment.
• Lanyard meets applicable OSHA and ANSI standards.
• For positioning only.  (Not for fall protection.)

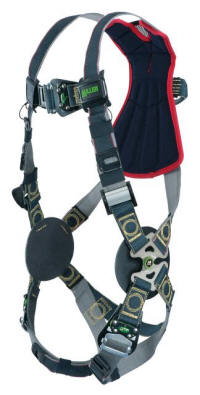

Miller� Revolution� Arc-Rated Harness

• New Miller� Arc-Rated Products are designed to protect workers from falls caused by electric arc-flash and arc-blast exposure when working at heights or in confined space applications near energized electrical sources.
• DualTech� webbing offers the durability and fire-retardant properties of Kevlar� on the outer side, with softer fire-retardant Nomex� on the inside of the webbing.
• PivotLink� design allows freedom of motion and comfort, while the unique cam buckles provide easy 2-finger adjustment.
• Leather insulators under all metal hardware offer additional protection.
• Kevlar web loop on the back pad allows for a "metal-less" connection when used with a Kevlar� shock-absorbing lanyard with a choke-off loop.
• Has bright red binding making them easily identifiable as an arc-rated product.
• Standard features include quick-connect chest buckle, back shield, self-contained label pack and web finials.
• Tensile strength is 10,000 lbs.
• Size: Universal (L/XL).
• Meets stringent ASTM F887-05 Arc-Flash standards and applicable OSHA, ANSI and CSA requirements.
• Models available with side D rings.
• Quick-connect or tongue buckle leg straps.

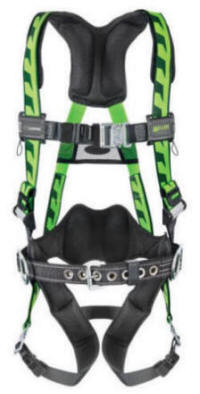

Miller AirCore Harness

• Unique cam buckles on the shoulder straps make vertical webbing adjustment the easiest of any harness on the market.
• Unique breathable, open-core padding technology provides optimal airflow and reduces heat and moisture build-up.
• Stand-up back D-ring easily adjusts, simplifies attachment.
• Quick-connect buckles for easy donning.
• Side D-Rings.
• Universal size.

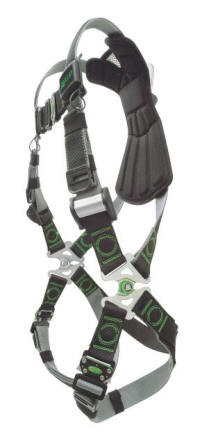

Miller� Revolution� Harnesses

• The Revolution Harness features a comfortable fit, easy-of-use, style, durability, and industry compliance.
• Significant features include ErgoArmor semi-flexible back shield for protective impact resistance, DualTech webbing with shape-retention memory tested to 7000 lbs. which conforms to body surface, PivotLink connection design for greater comfort in bending mobility, and quick release cam buckles for fast, convenient one-hand adjustments.
• Oversized D-rings minimize the possibility of false connections.
• A modular attachment overall design provides multiple connection points for belts, tools and accessories.
• Rated to 400 pound capacity.
• The Revolution Harness meets applicable OSHA, ANSI, and CSA requirements.
• Picture shows harness with Quick Connect buckles.
• Many options available.  Call for specific configurations.

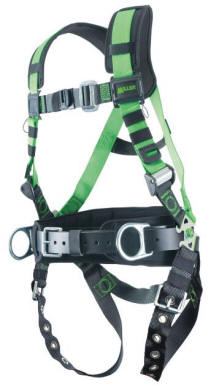

Miller� Revolution� Construction Harnesses

• Revolution Construction Harnesses feature many new innovations including Type 10 webbing, mating buckle chest straps, cam buckles, stand-up D-ring, self-contained label pack, web finials, and an integrated back and shoulder pad.
• The PivotLink connection offers a unique rotary action that provides a convenient attachment point for belts, tools and accessories.
• Rated to 400 pounds capacity.
• The universally-sized Revolution Harness meets applicable OSHA, ANSI and CSA requirements.

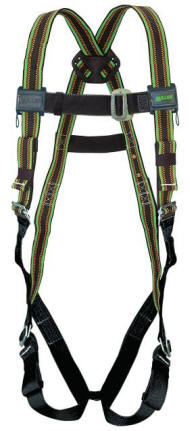

Miller� DuraFlex� Stretchable Harnesses

• This patented harness webbing features specially formulated webbing that stretches to provide greater comfort, improved safety and increased productivity.
• Solid colored leg straps for easier donning.
• Back strap prevents user from falling out of harness.
• Belt loops accommodate belts, back pad and other accessories.
• Comes with back D-Ring.
• Optional front and side D-Rings.
• Rated up to 400 pounds capacity.
• Meets applicable OSHA, ANSI and CSA standards.

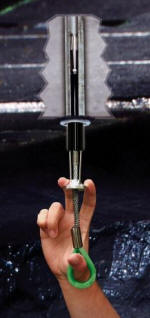

Miller� Grip� Anchorage Connectors

• Establish a safe anchor point by inserting the anchor into a properly sized, cured concrete hole.
• A safe anchor point is established by drilling a hole in cured concrete and inserting the anchor.
• Unit is reusable and designed for a single user fall protection in vertical/overhead applications.
• Constructed of stainless steel, aluminum and other non-corrosive materials for a longer service life.
• Meets applicable OSHA and ANSI standards.

Miller� Cross-Arm Straps

• Wrap around I-beams for lanyards or other devices.
• 2 inch D-ring slips through 3 inch D-ring on other end.
• 400 lb. load capacity.
• Provides secure attachment point for lanyards.
• Green in color.
• 3 foot or 6 foot lengths.
• MFR Part No. 8183/3FTGN or 8183/6FTGN.

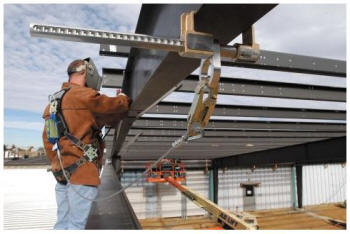

Miller� Shadowlite Beam Anchor

• Connect easily & securely to horizontal I-beam & H-beam flanges from 3 in. to 14 in. wide & up to 1.25 in. thick to provide a single worker with a movable anchor system they can depend on.
• Once locked on the beam, the anchor grips the beam securely yet moves freely as worker moves along the beam.
• Also available in larger sizes.

• MFR Part No: MR-50GC/50FT includes:
• 7 ft. tripod w/mounting bracket, pulley & carabiner.
• 50 ft. galvanized wire rope.
• Two heavy-duty equipment bags.
• MFR Part No: MR-50GCM/50FT includes all above plus Manhandler hoist.

• System available with various options.

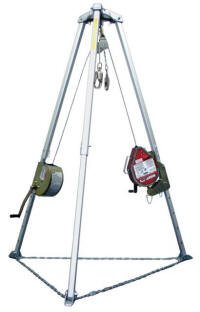

• Above picture shown with tripod, MightEvac SLR & Manhandler hoist.
• 7 foot and 9 foot tripod available.
• Galvanized or stainless steel wire rope.
• No Annual Factory Recertification Required*
• Significant long-term savings/lower cost of ownership.
• 20% lighter than competitive models.
• Provides quick and easy rescue with a 4:1 mechanical advantage (average speed of 25 feet (7.6m) per minute).
• 310 lb. (1.4kN) weight capacity.
• Durable, field-tested construction.
• Corrosion-resistant stainless steel/aluminum components.
• Convenient, heavy-duty carrying handle.
• Available in galvanized or stainless steel wire rope and Kevlar rope in lengths of 50 feet (15m), 100 feet (30m) and 130 feet (40m).
• Meets the new ANSI Z359 standards.
• *Does not apply to Canada due to CSA Z259.2.2-98 requirements. Must be inspected by a DFP authorized service center if involved in a fall or if fails user visual or function inspection.
